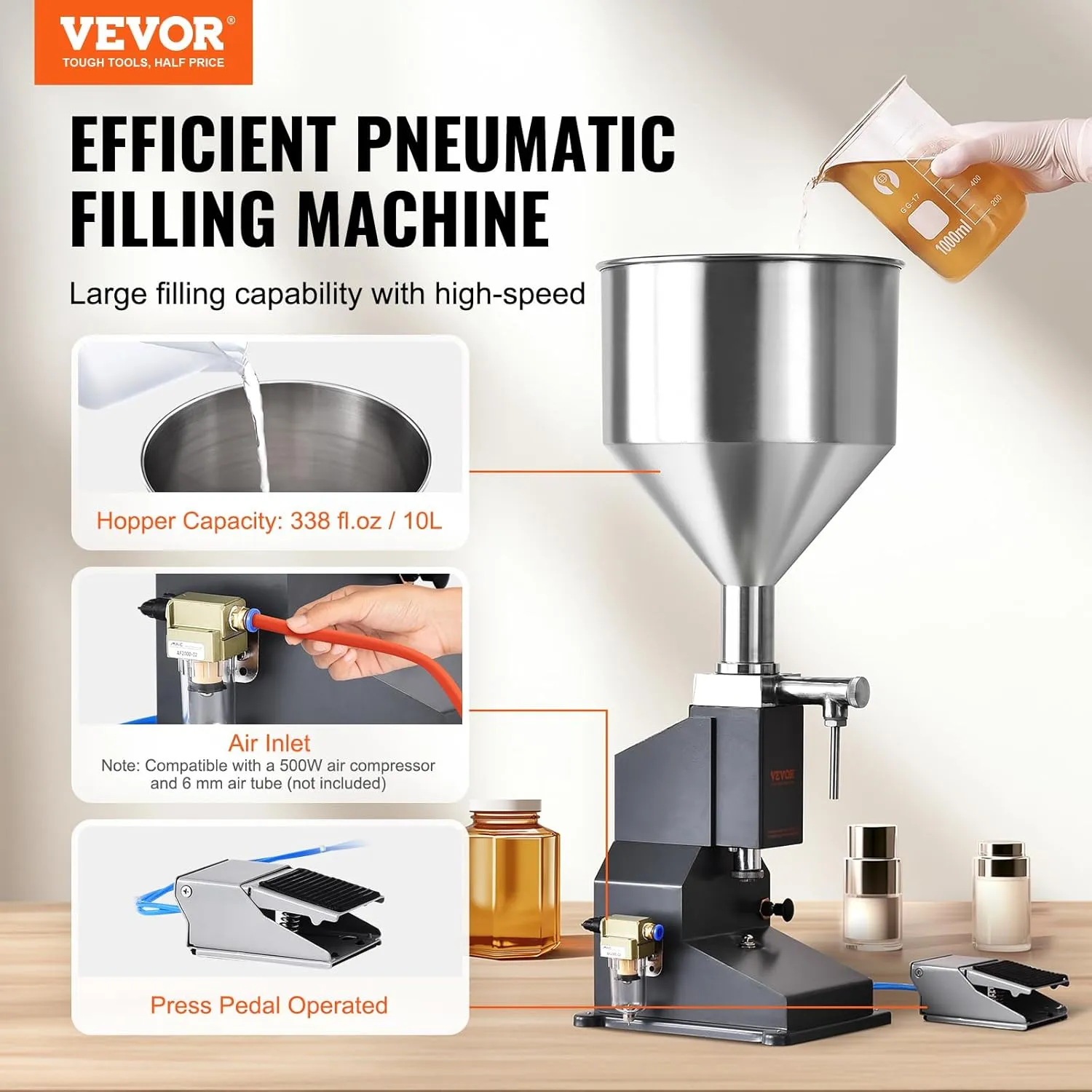

- Efficient Pneumatic Filling: This paste liquid filling machine is pneumatically driven and can be connected to a 500W air compressor as the power source. Then, step on the pedal to work, switch between bottles with both hands, and fill with the pedal while stepping on the foot. The entire filling process is labor-saving and efficient
- Accurate Quantification: The filling amount and speed can be manually controlled through two screws, with a discharge range of 5 to 50ml, meeting various filling needs. After adjusting the discharge amount, precise discharge can be achieved by pressing the pedal each time, with high filling accuracy.

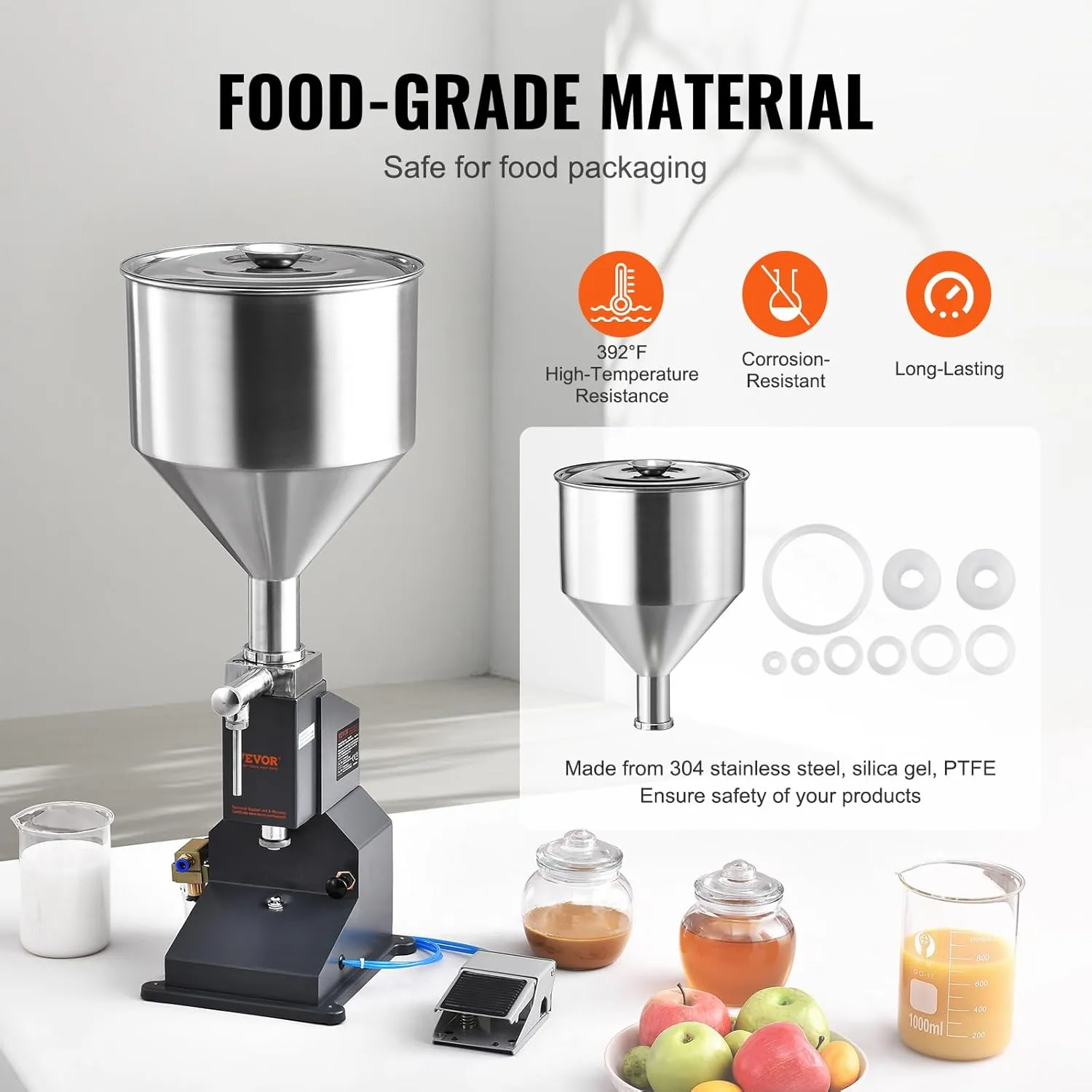

- Food Grade Materials: Our material selection is opposite to ordinary silicone and industrial plastic. All components in contact with liquids are made of food grade materials, which have high durability and corrosion resistance. 304 stainless steel has a long service life and can withstand high temperatures of 392 ° F (200 ℃), ensuring that the liquid does not react chemically with the machine.
- Anti Drip Design: Each discharge nozzle is made of high-quality anti drip design made of stainless steel, ensuring smooth and unobstructed discharge. The oil seal and discharge nozzle are equipped with anti drip gaskets, ensuring that no dripping occurs during each discharge and improving work stability
- Widely Application: This filling machine is suitable for liquid and paste with good fluidity such as honey, oil, essence, oil consumption, etc., and is widely used in household daily sub packaging and production workshops/workshops. Attention: This liquid filling machine is not suitable for particularly thick creamy materials.

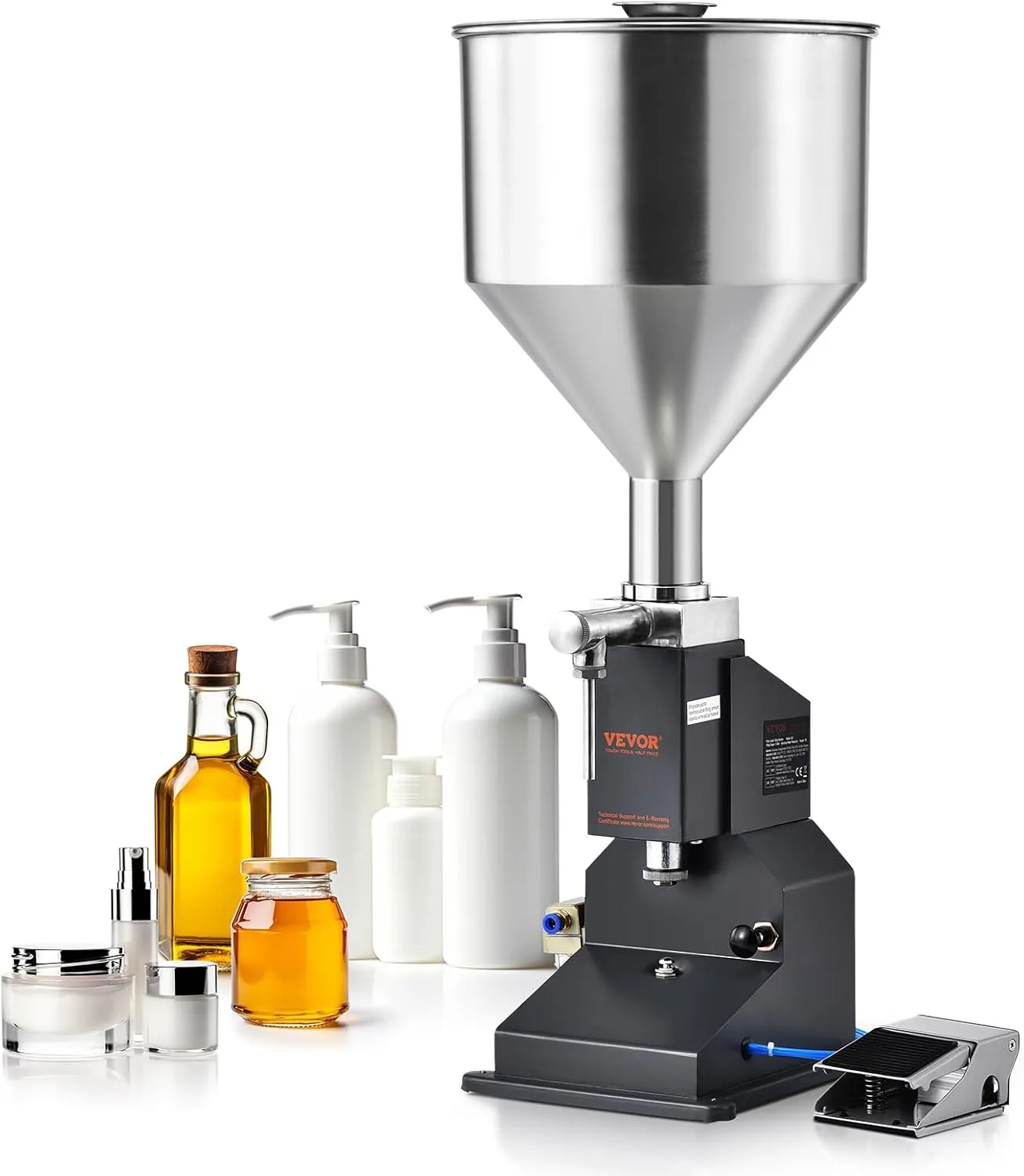

A02 Pneumatic Filling Machine For Liquid & Paste
A02 pneumatic filling machine adopts a piston type structure, for 5-50 ml quantitative filling of the liquid, paste and other materials.
key Features
This filling liquid machine is driven by pneumatic power. Filling speed: 20-60 times/minute. Filling volume: 5-50ml(adjustable).Filling accuracy ( /- 1%).
All parts of the pneumatic liquid filler that touch the material being filled are made of food- grade stainless steel, including the hopper with a capacity of 10kg. Solid base keeps sturdy. Easy to maintain.
A high quality anti-drip filling nozzle, made of premium steel, is not easily plugged, ensuring this automatic liquid filling machine an accurate and efficient filling. Stable, smooth and durable.

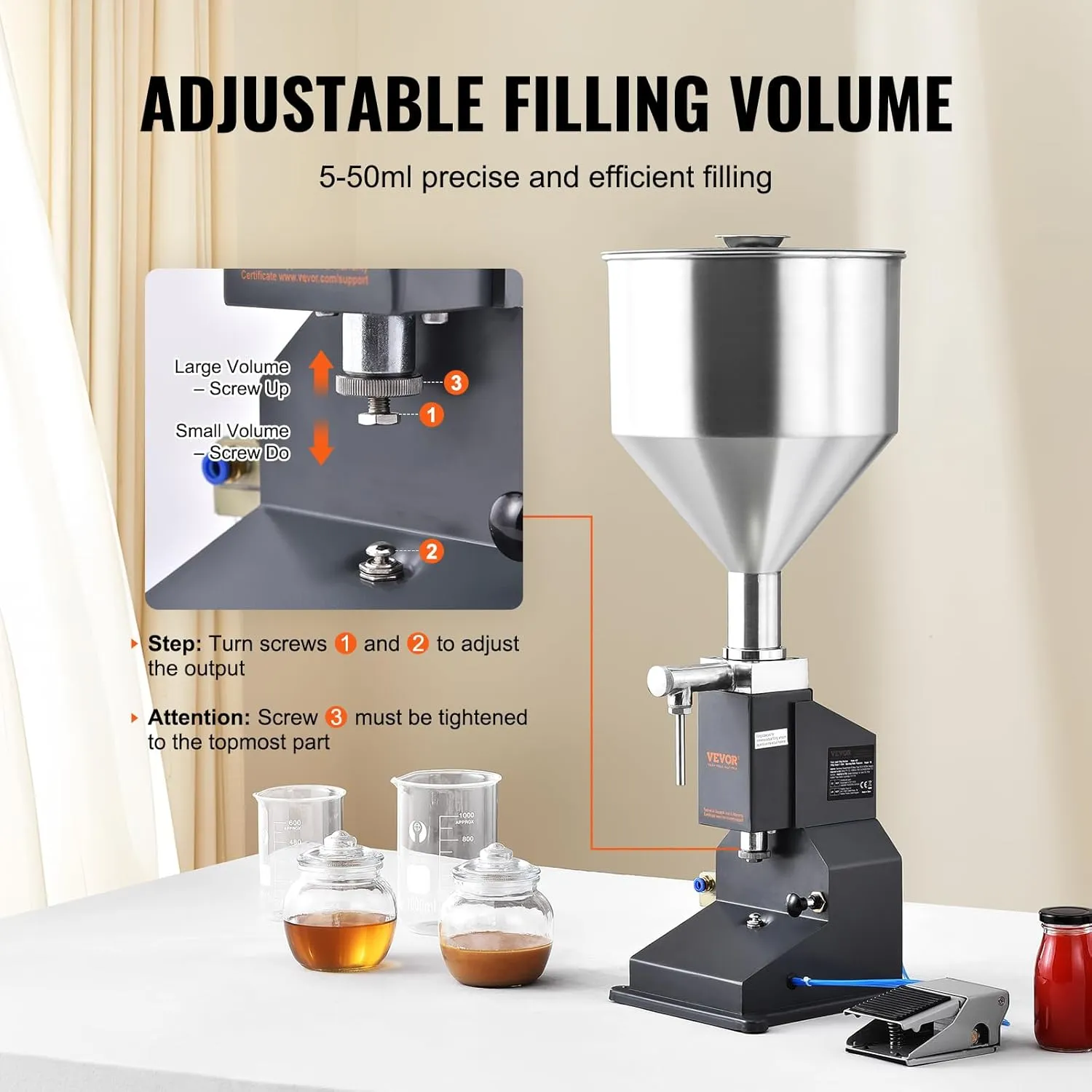

With the filling volume regulator knob, quantitative discharging, filling rate and filling speed can be controlled. Turn the regulator knob clockwise or anti-clockwise to find your needed filling condition.
After you connect the air compressor, adjust the filling condition, don’t forget to press the on/off button to turn on the machine, then use pedal switch to control and finish the filling. Very convenient.
This pneumatic liquid filling machine is applicable to the pharmaceutical, cosmetic and other industries, it is the ideal paste liquid filling equipment.
Specifications
Working power: pneumatic
Working pressure: 0.4-0.6MPa or 58-87PSI
Speed: 20-60 times/minute
Bottle diameter range: 3-15mm
Filling range: 5-50ml (adjustable)
Filling accuracy: ±0.2-1ml
Hopper volume: 10L
Height range: 7.87"/200mm
Package size(L x W x H): 33 x 32.5 x 82cm (13 x 13 x 32inch)
Gross weight: 10kg (22lbs)
Package Content
1 x Funnel
1 x Paste and Liquid Filling Machine
1 x Set of accessories (As shown in the picture)
