- 【PARAMETER】Voltage: 110V/60Hz; Material: Stainless Steel; Driven: Pneumatic; Filling volume (ml): 100-1000; Filling accuracy (FS): ±0.5%; Production capacity (cycle/min): 1-25; Applicable tolerance (m³/min): ≥0.1; Product size(Exterior sizes): 38.97*11*38.97in(99*28*99cm); Net weight: 30kg (66lb); Applicable pressure (Mpa): 0.4-0.9.

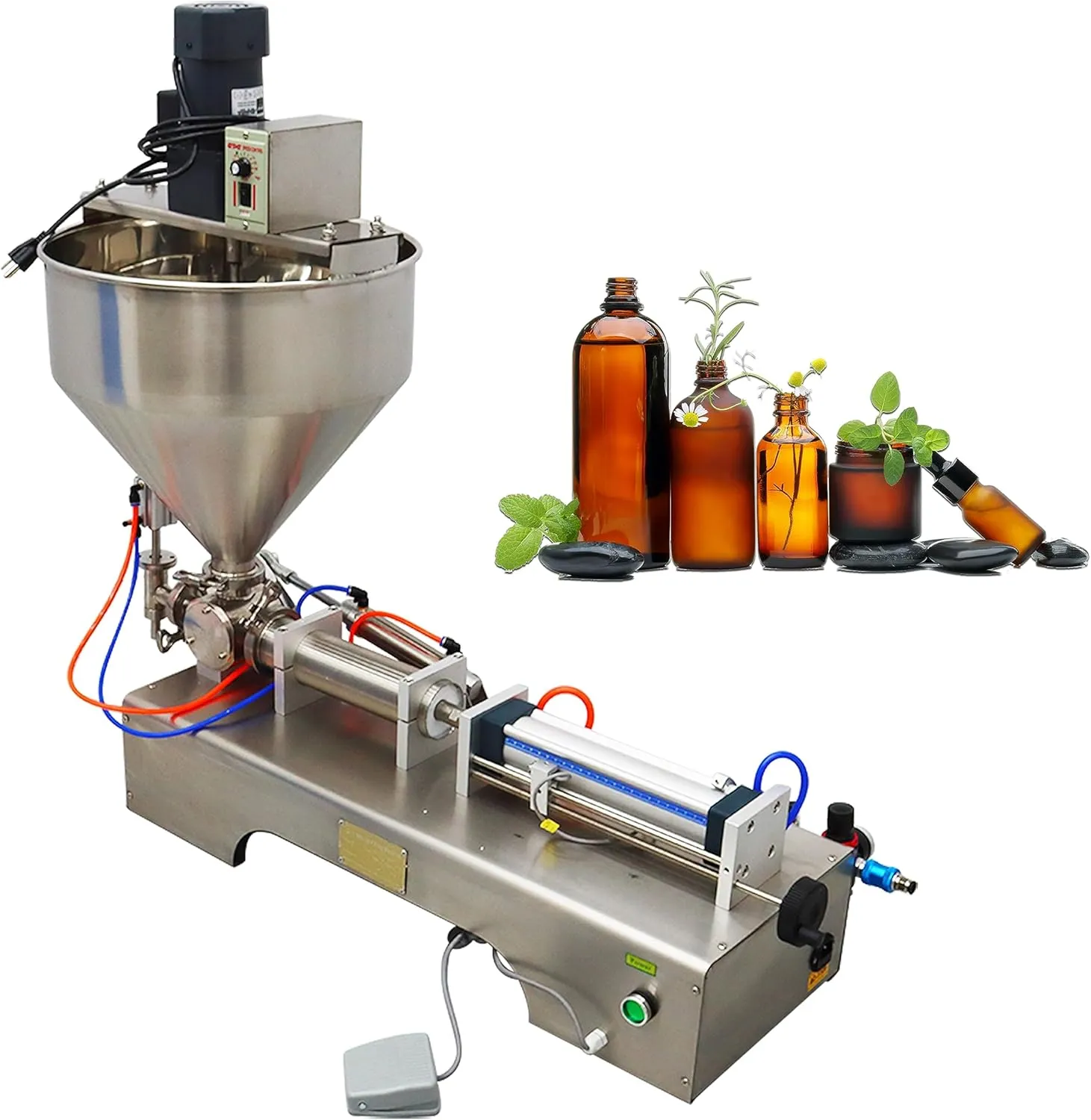

- 【PNEUMATICALLY-DRIVEN】Our Liquid Paste Fill Machine applies pneumatically-driven structure. One-click control, can be converted to provide a variety of options to meet your needs.

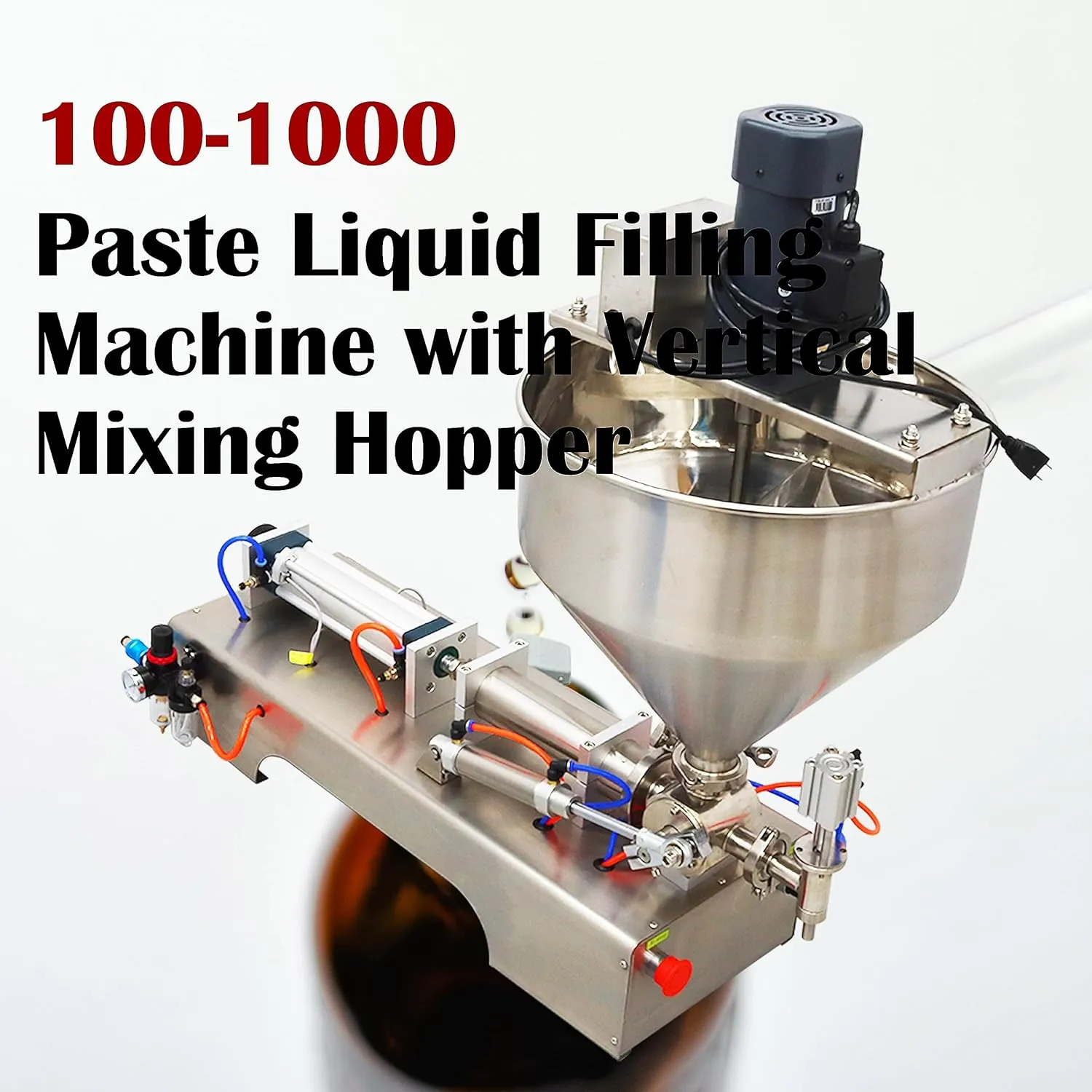

- 【MIXING FUNCTION】The Paste Liquid Heating Filling Machine has mixing funtcions. The max rotating speed reaches 1200rpm.
- 【TWO OPERATION USAGE】The Pneumatic Paste Liquid Filling Machine with single nozzle is comes with a self-sucking pipe. The hopper, drip-proof nozzle and three-way valve is connected by clamps which is easy to be disassemled and cleaned. This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily.
- 【APPLICATION】The Liquid Paste Fill Machine is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid, such as shampoo, toothpaste, honey, cream, lotion, butter, ice cream, etc. And can heating all kinds of cream, liquid, sauce.
Product safety precautions:
This series of filling machine is only suitable for filling liquid, low concentration paste.
To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. The rear half of the machine (near the control buttons) and the lower part of the machine frame are equipped with electrical control components. Under no circumstances should the body be washed directly with water, otherwise there will be danger of electric shock and damage to the electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay attention to personal safety.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.
